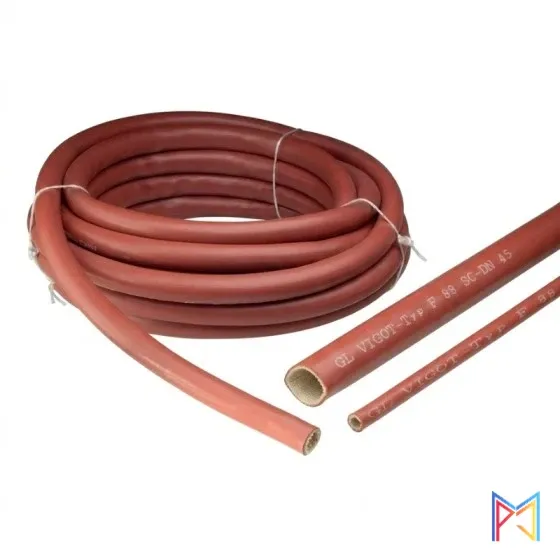

Vigot Fire Sleeve F88 SC DN 15 44888015
Kode: VGDEDN150247
| DIN EN 45545-2 | 2013-08-R22/R23-HL3 |
|---|---|
| ISO 15540 | 2016 |
| Continuous temperature | -60 to +300 °C |
| Wall thickness | 3,5 – 4,0 mm |
| Weight | 4,9 kg/m2 |
- Tanyakan harga dan ketersediaan langsung ke tim kami
- Pelayanan responsif dan solutif
Deskripsi
- Fire sleeve – F88 SC
- The extruded fire sleeve with silicone coating, high resistance and
- material density. Available in the standard colour red, but also in
- other colour coding.
- Certifications
- Type Approval DNV-GL
- certified to IP54 protection class*
- Technical data
- Backing material ISO 2078 mineral fibre
- Coating Silicone – ISO 1629 MVQ/VMQ
- Temperature Range
- Short-term with fire exposure up to 1200 °C
- Short-term partial overheating up to 1600 °C
- Technical values
- Available sizes
- Available lengths 25 m,
- standard DN65 and over, 5 m
- Key characteristics
- excellent mechanical protection
- halogen-free flame protection
- free of softeners
- free of heavy metals
- REACH-compliant
