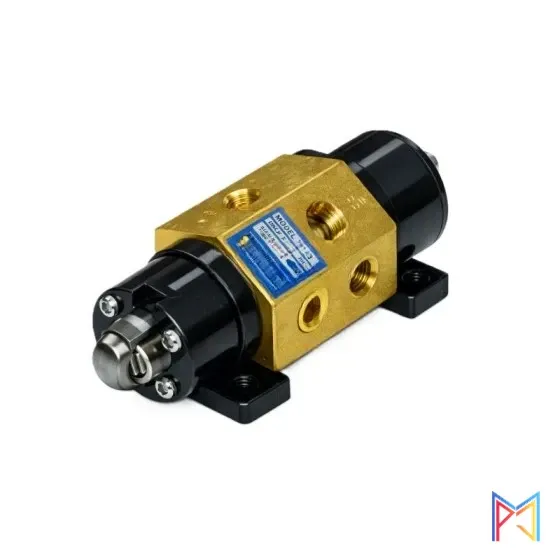

Lexair Hi-Cyclic Mechanically Operated Directional Control Valve BC-1/4-HYD-TYPE I
Kode: LXUSBC4I0235
| Body | Brass Alloy 360 |
|---|---|
| Seals | Buna-N |
| Spool | 303 Stainless Steel (TYPE I) |
| Port Size | 1/4 Inch |
| Temperature Range | -20°F to +160°F (With Buna-N seals) |
| Pressure Rating | Hydraulic service – 2000 PSI for 1/4” |
| Flow | Hydraulic up to 16 GPM |
| Model Number | BC |
| Primary Actuator | Cam |
| Secondary Actuator | Spring |
| Function | 2 Position, Spring Return |
| Note | When ordering, always state: |
| Model | BC; Mechanically Operated |
| Spool type | TYPE I |
- Tanyakan harga dan ketersediaan langsung ke tim kami
- Pelayanan responsif dan solutif
Deskripsi
- Spesifikasi
- Model Numbers
- This would be a Cam Roller Operated, 4-way, 5-ported, 2-position, spring return valve with 3/8” NPT ports for air service with a Type I spool.
- Port Size; 1/4 Inch
- Media: Hydraulic. If special hydraulic fluids are to be used, advise type of fluid or specify your O-ring material.
- Two position, positive lap spool used for conventional 4-way, 2-position applications. Can be used as a normally open or normally closed 3-way valve by simply plugging one cylinder port. Use for air and hydraulic service. This spool type will be furnished unless otherwise specified.
