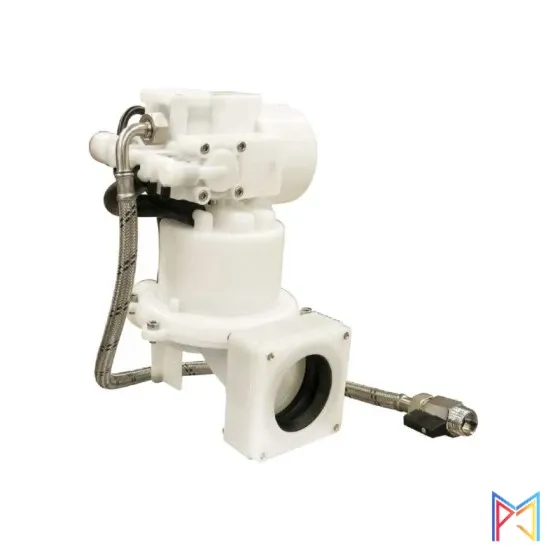

JETS VFD Valve Piston Complete 054100970
Kode: JTNOF9700236
| Outside Dimensions | 235 x 195 x 290 mm (LxWxH) |
|---|---|
| Discharge Valve Outlet | Outside diameter Ø 50 mm |
| Generic Material | POM |
| Water Connection | ½” male BSP |
| Net Weight | 1.91 kg |
| Flushing Time | 5 seconds |
| Discharge Time | 2 seconds |
| Water Pressure | 2-7 bar |
| Operating Vacuum | Recommended 30-55 % Vacuum |
| Air Consumption | Approx. 48 liters at 50% Vacuum |
| Water Consumption | 1L (3 bar) |
| Temperature Range Minimum | 1°C, to Maximum 60°C, (unless frost protection measures are taken) |
- Tanyakan harga dan ketersediaan langsung ke tim kami
- Pelayanan responsif dan solutif
Deskripsi
- Jets™ VFD valve is a vacuum operated flush and discharge valve.
- Features:
- Low water consumption.
- Design optimized for easy maintenance.
- Ideal for retrofit of existing installations.
- Technical Data
- Operating Data
