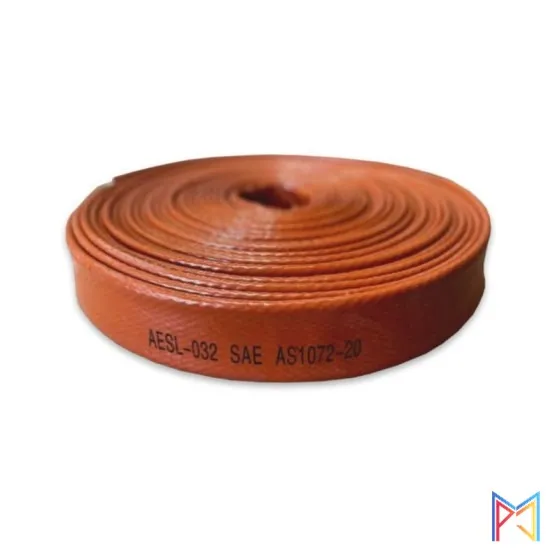

HPA Silicone Fire Sleeve AS1072 HP FSR-75 Australia

Deskripsi

• Jual
• HPA Silicone Fire Sleeve AS1072 HP FSR-75 Australia
• di Jakarta, Indonesia
• Made from a woven fibreglass core coated with an extra thick, special formulation of silicone rubber, HPA Fire Sleeves provides crucial protection against high temperatures and potential fire hazards. Our fire sleeve insulate and safeguard hydraulic hoses from heat and flames, ensuring operational integrity and enhancing safety in demanding industrial environments. Made to the AS1072 aerospace standard, the HPA Fire Sleeve products are NATA lab tested and certified asbestos free (ARL Job Number 11-11146).
• AeroSpace Standard
• HPA Fire Sleeve conforms to the AS1072 standard
• Why Aerospace Standard
• The AS1072 standard provides minimum quality levels which
• HPA deems critical for this product range
• Min 0.8mm cover of silicone
• Min temp range of -54°C -> 260°C
• Fluid resistance (to hydraulic oils & other fluids)
• Asbestos free
• Product markings
• Working Temperature
• Continuous at 260°C
• 1090°C for 15 to 20 minutes
• 15 to 30 seconds exposure to 1650°C
• Fitting Guidelines
• Industry experience generally dictates appropriate size for different situations however the following clearance guide can be used as a starting point;
• For lengths of
• 5 – 10m add 10% to ID
• 10 – 20m add 15% to ID
• For +20m lengths, add 20% to ID
