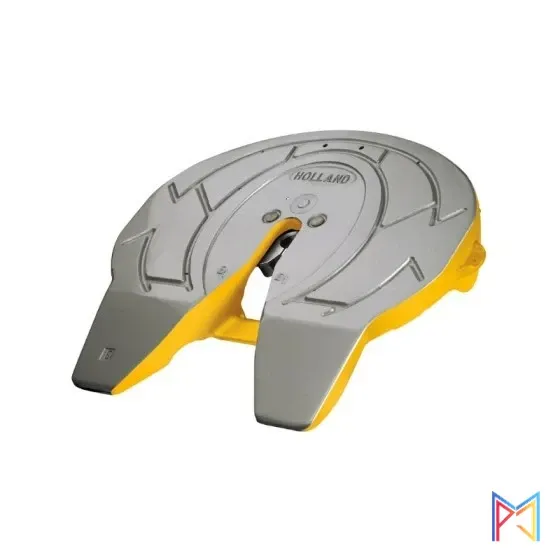

Holland Fifth Wheel FW3510-TR

Deskripsi

• FEATURES
• High strength cast steel construction – permitted operating temperature to – 40 degrees C
• Top surface machined to improve wear, steering and fit with Trailer Plate. Patented grease groove pattern for improved wear and durability and prepared for central lubrication system
• Air operated lock release mechanism
• Locks require only 140 kg to couple
• Available with brackets for electronic sensors to indicate locks closed
• The proven 36 t cast steel fifth wheel HOLLAND FW3510-TR with pneumatic operation is a special development for terminal tractors.
• The HOLLAND FW3510-TR fifth wheel is designed for heavy-duty use on terminal tractors and is in continuous operation around the clock in ports and cargo terminals around the world.
• The main features are:
• Cast from high quality steel
• Designed for high imposed loads and a long service life
• Approved for forced steering
• Optional with electrical sensor monitoring for the locking system
• Optional with additional manual locking for use in public road traffic
• The load limits given are valid for operation with speed limited to 35 km/h maximum and for use on well maintained roadways and yards within distribution depots and dockyard areas.
• Specification with optional manual secondary lock for operation on public roads.
• The versions without additional securing have a permissible total towing weight of 100,000 kg.
