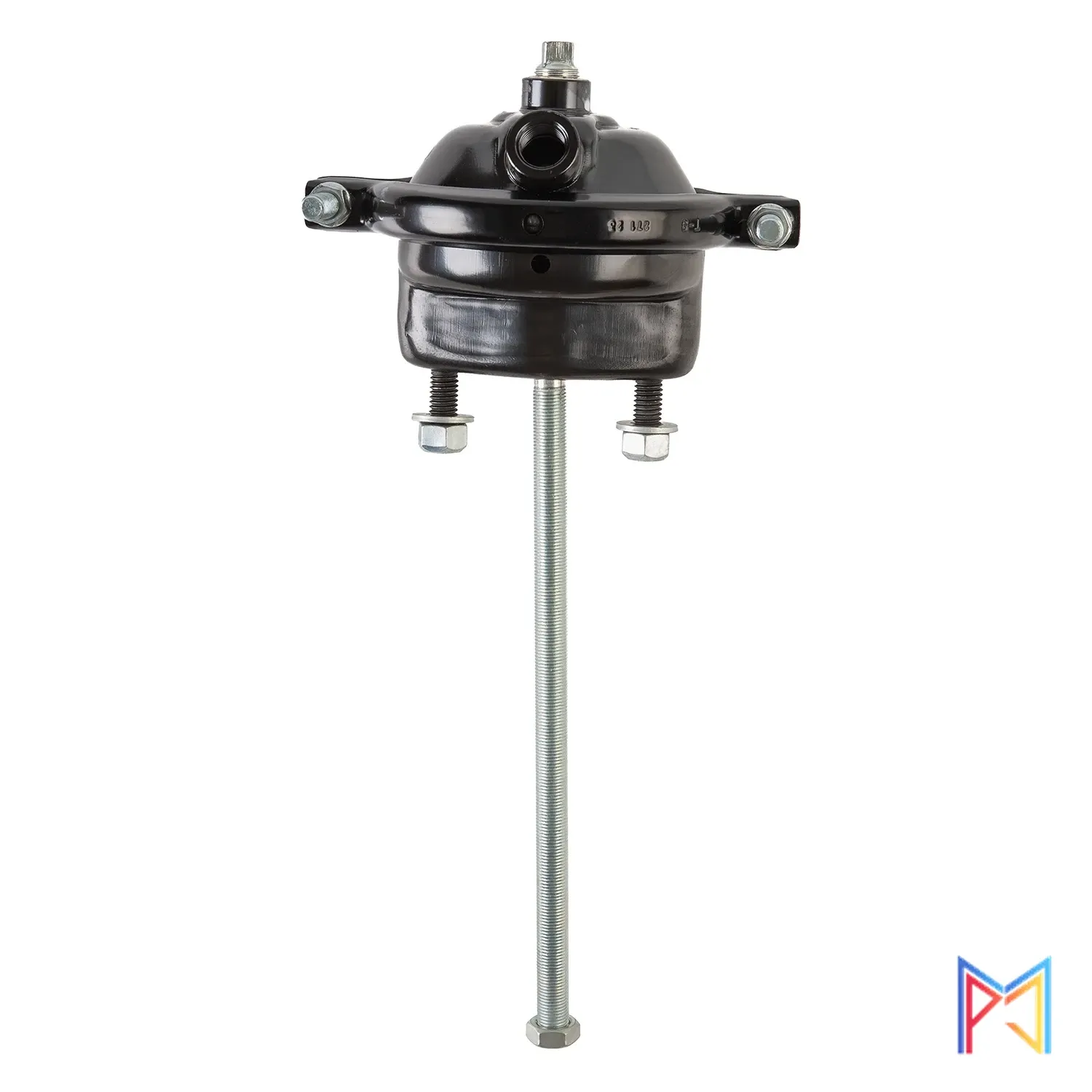

Haldex Service Chamber Brake T09 SC09 Mexico
Kode: HXMXSC090181
| Part no. | SC09 |
|---|---|
| Status | Active |
| Customer specific | No |
| Product line | Haldex |
| E = Stud Spacing | 3.00″ (76.2mm) with 7/16-14 UNC studs |
| Actuator Type Size | 09 |
| Stroke Type | Standard |
| Available Stroke | 1.75″, 44mm |
| A | 3.7″, 94mm |
| D | Dimension at Service Clampband 7.5″, 190mm |
| E | 3.00″, 76.2mm |
| J | 10.40″ |
| K | Distance to Clevis Pin centerline from face of Service Housing |
| T | 90° |
| S1 | 0° |
| Weight | 4.2 lbs. , 1.9 kg. |
| Quantity | 1 |
- Tanyakan harga dan ketersediaan langsung ke tim kami
- Pelayanan responsif dan solutif
Deskripsi
- Service Chamber – Size T09
- Steel Pressure Housing; Powder coated with resistance welded air ports
- World Class Diaphragm; High quality rubber compound, resistant to heat and cold; Superior flexibility even at -40°F
- Sturdy Service Housing; Powder coated for corrosion resistance; Step bottom with 12 gauge steel
- Orange Alert® Stroke Indicator
- Self-piloting Dust Shield
- Notes
- A = Length from mounting bracket to end of Spring Housing
- D = Dimension at Service Clampband
- J = Pushrod Length from face of Service Housing: 1/2-20 UNF pushrod threads
- K = Distance to Clevis Pin centerline from face of Service Housing
- S1 = Service Clampband position (0°)
- T = Air Port position (90°)
- Technical specifications
