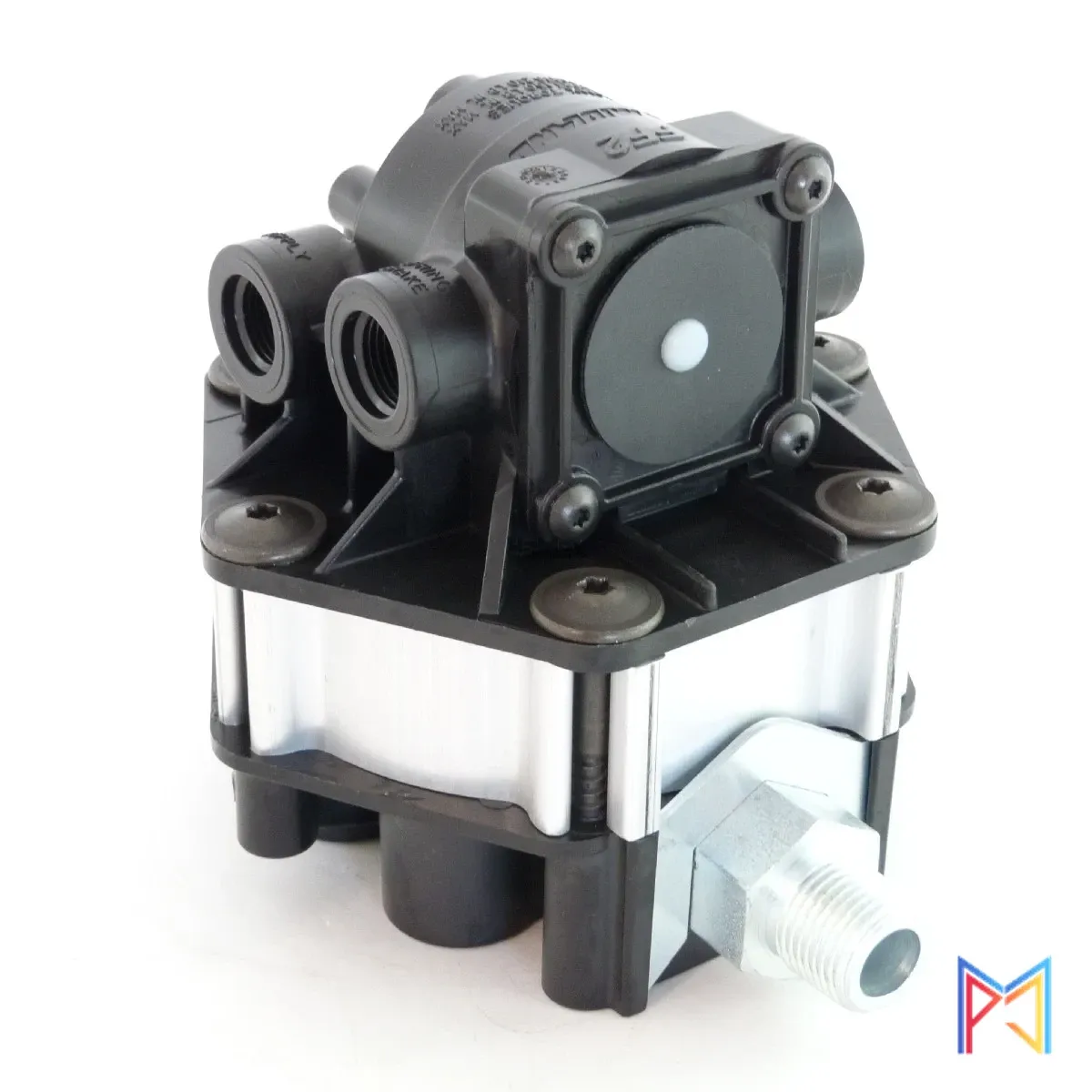

Haldex Full Function Valve KN28601
Haldex

Haldex Full Function Valve KN28601

Kode: HXUS86010243

Spesifikasi
Space age engineering grade compositesresists corrosion, lighter and more durable than aluminum.
Crack Pressure3.0 PSI
Reservoir1/2″
Control1/4″
Supply3/8″
Spring Brake2 @ 3/8″
Delivery (4)3/8″
OEM Part NumberN4304AB
Approximate Weight3 lbs.
Pesan via Email
  • Tanyakan harga dan ketersediaan langsung ke tim kami
  • Pelayanan responsif dan solutif
Lihat semua Valve Rem Angin & Pneumatik →

Deskripsi

  • FF2 – Full Function Trailer Valve
  • Single valve system – easy to install, maintain and troubleshoot.
  • Built-in pressure protection and anti-compounding functions: FMVSS-121 compliant, eliminates broken foundation components caused by compounding of spring brake.
  • Built-in service and spring brake quick release.
  • Heavy wall mounting nipple is treated to resist corrosion and withstand severe duty applications.
  • Service brake priority ensures air tank pressure is sufficient to stop vehicle when spring brakes are first released.
  • Can be used with single or twin air tanks.
  • Approximate Weight 3 lbs.
  • Technical specifications
