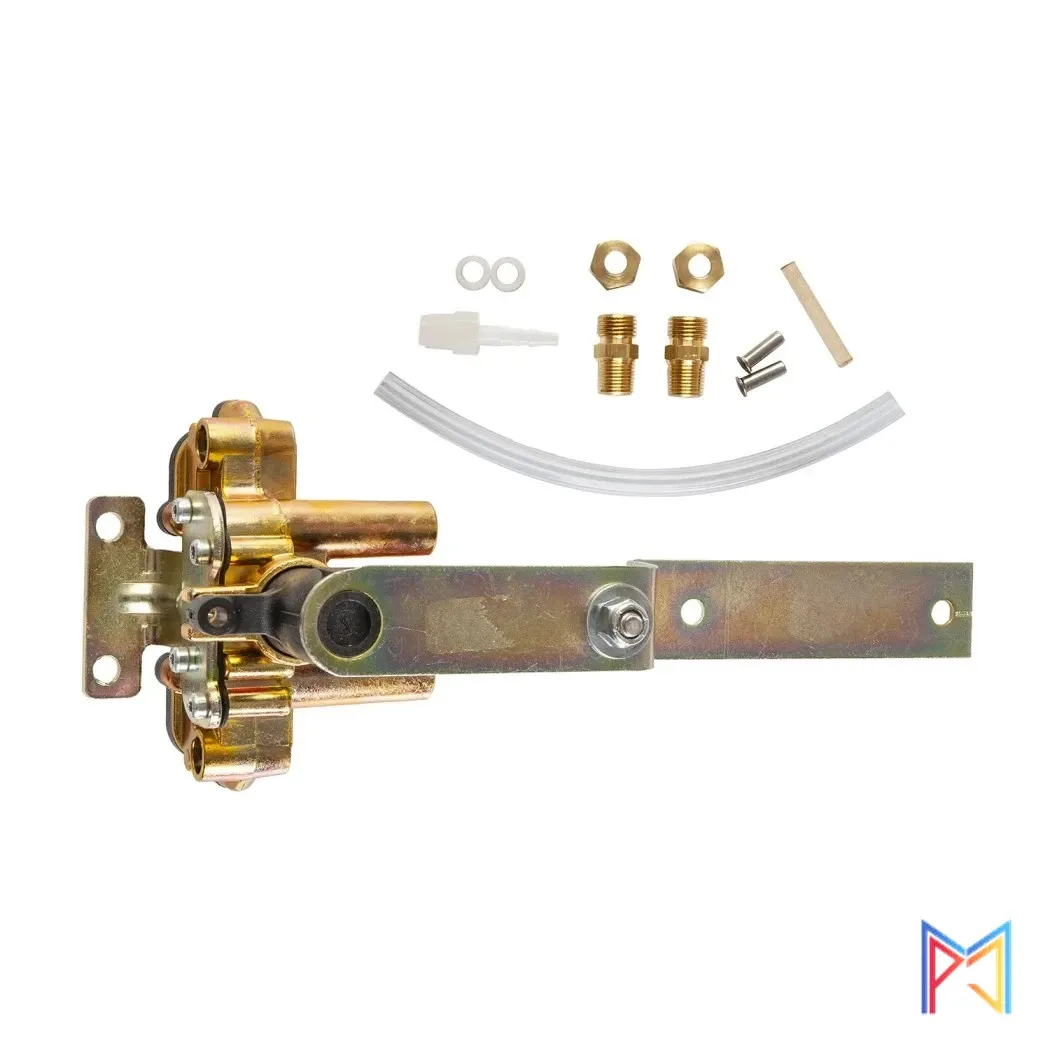

Haldex Air Height Control Leveling Valve 90054007 USA

Deskripsi

• Type CR – Controlled Response Height Control Valve
• All ports are 1/8″” NPT.
• Original equipment on many Trucks and Trailers
• Automatically adds air to, or exhausts air from air suspension to maintain constant static design height.
• Does not respond to short duration dynamic changes in axle position, thus reducing air consumption which extends compressor life and saves fuel.
• Notes
• Direct replacement for 90554186 Leveling Height Control Valve.
• TIME DELAY HEIGHT CONTROL VALVE FOR TRACTOR AND TRAILER AIR SUSPENSIONS AND INDUSTRIAL APPLICATIONS
• FEATURES BENEFIT
• Controlled response time delay technology maintains chassis position and conserves air to increase compressor life.
• Robust die cast zinc body, precision machined steel and durable plastic components to insure operation in extreme conditions.
• Available with 1/4″”, 3/8″” or metric filter fittings, with integral dump valves and break away arms. Combined with flexible right or left mounting options, these features allow ease of installation and reduce inventories.
• Minimum deadband range provides excellent control of suspension ride height to maintain drive system pinion angles.
• Optional integrated dump valve provides the ability to automatically or manually exhaust air from the suspension. Optional Dump Valve
