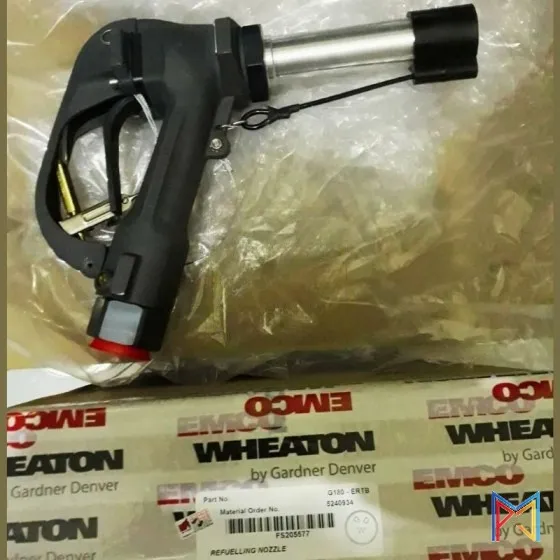

Emco Wheaton Overwing Refueling Nozzle 1.5 Inch G180-ERTB UK
Kode: EWGBERTB0157
| Brand Origin | United Kingdom (UK) |
|---|---|
| Part Number | G180 ERTB |
| SPOUT | E = 1.5” Straight / No Bumper Ring |
| INLET | R = 1.5” ISO No check valve |
| DUST CAP/GROUNDING CABLE | T = Standard cable With dust cap |
| HANDLE GUARD | B = Black |
| DIMENSION | 45x35x20 |
| WEIGHT | 3150 gr |
- Tanyakan harga dan ketersediaan langsung ke tim kami
- Pelayanan responsif dan solutif
Deskripsi
- Technical Info
- Both the standard G180 and speed spout options can handle pressures up to 7.5 bar and work in temperatures as low as -50°C (-58°F). Flow is rated up to 302 litres/min (66 US gallons/min).
- Features & Benefits
- The standard G180 is ideally matched for refueling operations across the aviation sector. It’s equipped with a stainless-steel hedge pin for salt water resistance – ideal for marine environments such as oil rigs – and key ring for easier repair. An optional bumper ring can also be added, acting as a handle and a wing guard. Rugged by design, this overwing fueling nozzle is made of components that maintain electrical continuity between the swivel and hose.
- The G180 with speed spout includes all of these features but is also fitted with a quick-change mechanism. This allows spouts to be installed and removed with one hand in under five seconds.
